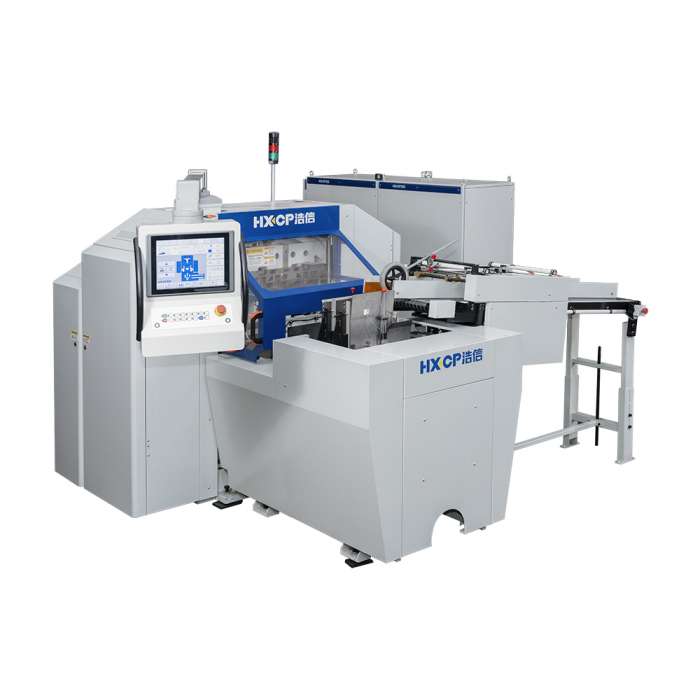

HX150DH High Speed Three Knife Trimmer

Tag : three knife trimmer,three knives trimmer,book block,perfect binding,book trimming machine
HX150DH Three-knife Trimmer is the ideal high-speed three-side cutting equipment for perfect binding books, can be used alone, and can also connect with the high-speed perfect binding line, to achieve stable high-speed three-side trimming of perfect binding books and book blocks, with the speed of 4,200 cuts per hour, that's why HX150DH Three-knife Trimmer can perfect match with the high-speed perfect binding line, which with the speed can be up to 18000 books per hour. Adopting the stream feeding method to feed the books into the stacking station, adjust the height of the pusher to push the books to realize multi-book cutting.

Parameter

  • Electrical Box Size
  • 2250×670×1850mm
  • Whole Machine Weight
  • 6100kg
  • Electrical Box Weight
  • 500kg
  • Trimming Speed
  • 300-4200cuts/h
  • Book Stacking Speed
  • 300-15000books/h
  • Stacking Height
  • 2-80mm
  • Max Book Size (Before Trim)
  • 310×430mm
  • Max Book Size (After Trim)
  • 305×420mm
  • Min Book Size (After Trim)
  • 70×100mm
  • Max Trim Thickness
  • 80mm
  • Min Trim Thickness
  • 2mm
  • Feeding Speed
  • 300-15000books/h
  • Input Air Pressure
  • ≥6Pa
  • Input Voltage
  • 3ph,380V
  • Power
  • 14kW
