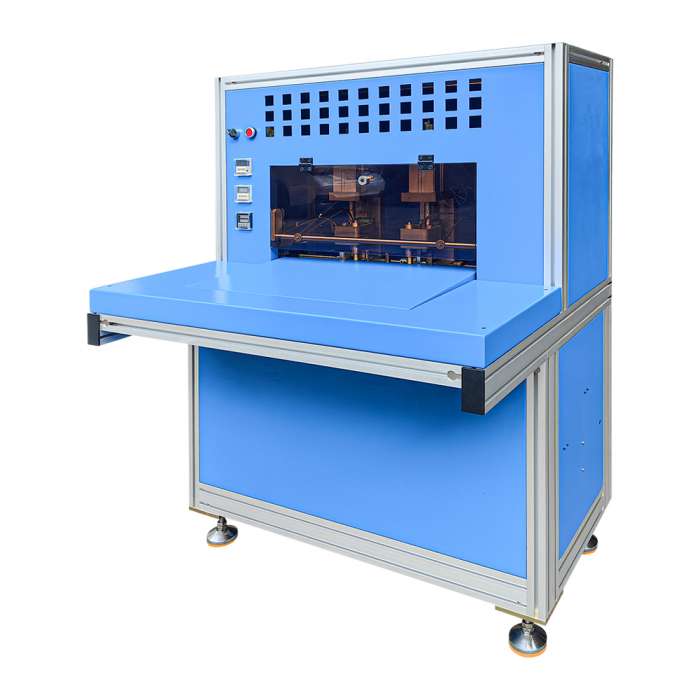

HX500CR Semi Auto Hardcover Book Case Corner Rounding Machine

Tag : round corner case,corner rounding machine,hardcover case
HX500CR Semi Auto Hardcover Book Case Corner Rounding Machine is the equipment for forming the straight corner hardcover case into round corner with different radii models as required by the customer, no need to change the front case making process, with the forming and heating function, to ensure the good performance. It is a good partner for case maker with its easy operation and economic price.

Parameter

  • Speed
  • 20-30pcs/min
  • Max Case Width
  • 500mm
  • Min Case Width Size
  • 140mm
  • Board Thickness
  • 1-5mm
  • Weight
  • 190kg
  • Dimensions
  • 1350×1050×1500mm
  • Voltage
  • 220V/50HZ
  • Air Demand
  • 0.5-0.6pa
  • Rated Power
  • 200w
  • Applicable Materials
  • glued paper, coated paper, kraft paper, leather-filled paper
  • Applicable Rounding Mold Radius
  • R4/R6/R8/R10/R12

Details

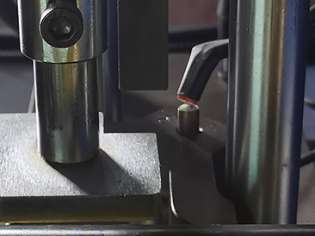

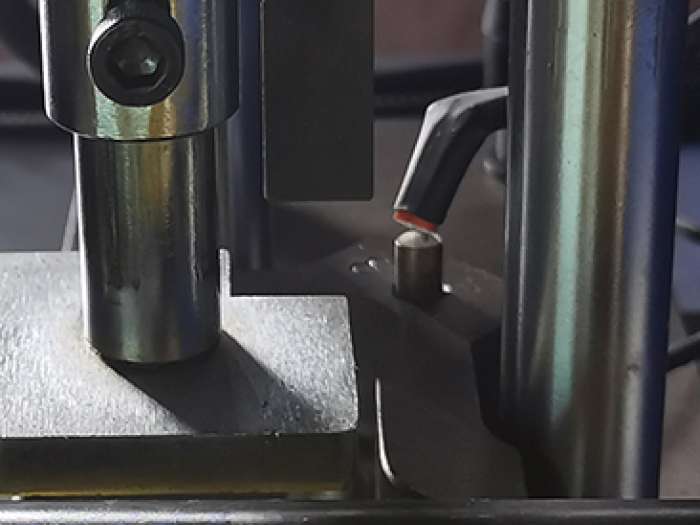

  • Electric Heating Device

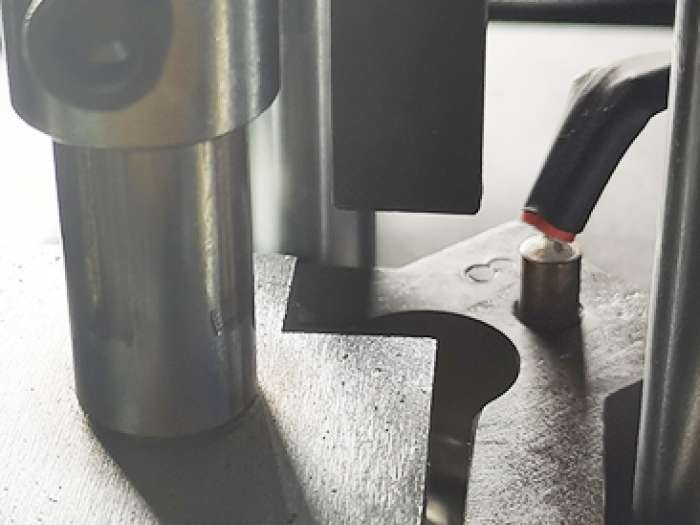

  • Flatten Press and Form

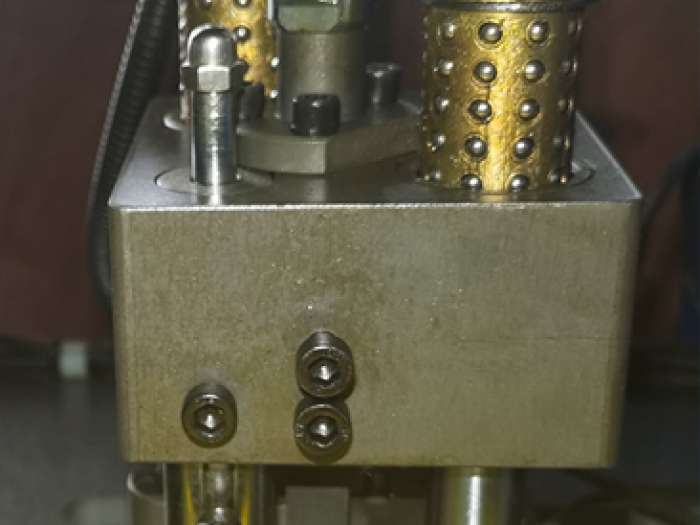

  • Changable Molds

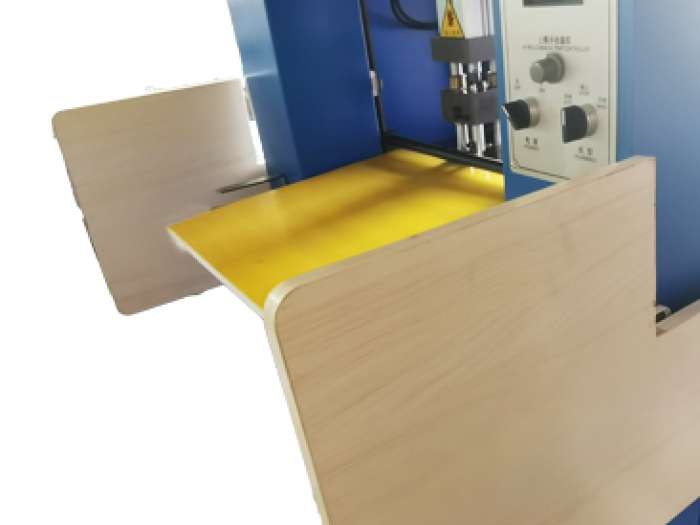

  • Foldable Working Table
