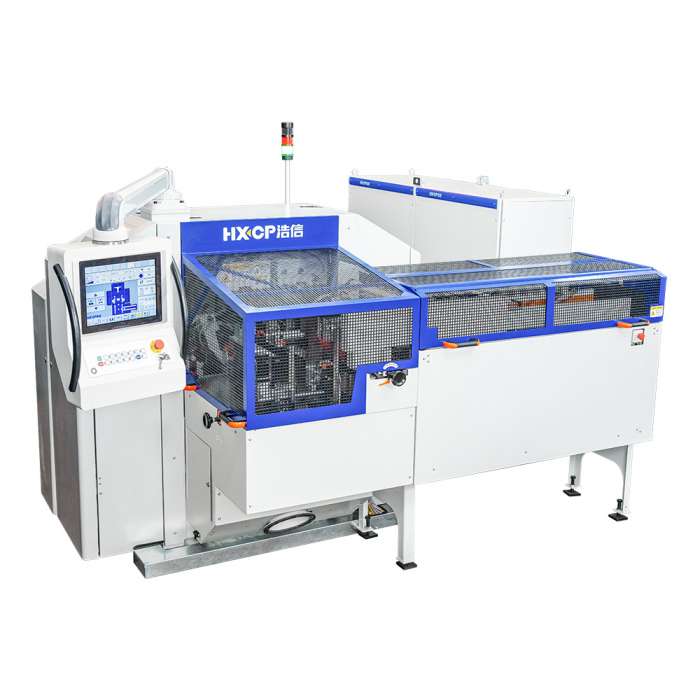

HX120DH High Speed Three Knife Trimmer

Tag : three knives trimmer,three knife trimmer,book block,perfect binding,book trimmer
HX120DH Three-knife Trimmer is the ideal three-side cutting equipment for perfect binding books, can be used alone, and can also connect with the high-speed perfect binding line, to achieve stable high-speed three-side trimming of perfect binding books and book blocks, with the speed of 4200 knives per hour, HX120DH Three-knife Trimmer can connect with the perfect binding production line, which with the speed can be up to 12000 books per hour. Adopting the belt conveyor to separate each book, then send to the dual pre-stacking stations, to realize multi-book stacking, cutting, multi times of production efficiency.

Parameter

  • Electrical Box Size
  • 2250×670×1850mm
  • Whole Machine Weight
  • 6000kg
  • Electrical Box Weight
  • 500kg
  • Trimming Speed
  • 300-4200cuts/h
  • Book Stacking Speed
  • 300-12000books/h
  • Stacking Height
  • 2-80mm
  • Max Book Size (Before Trim)
  • 310×430mm
  • Max Book Size (After Trim)
  • 305×420mm
  • Min Book Size (After Trim)
  • 70×100mm
  • Max Trim Thickness
  • 80mm
  • Min Trim Thickness
  • 2mm
  • Feeding Speed
  • 300-12000books/h
  • Input Air Pressure
  • ≥6Pa
  • Input Voltage
  • 3ph,380V
  • Power
  • 13kW
