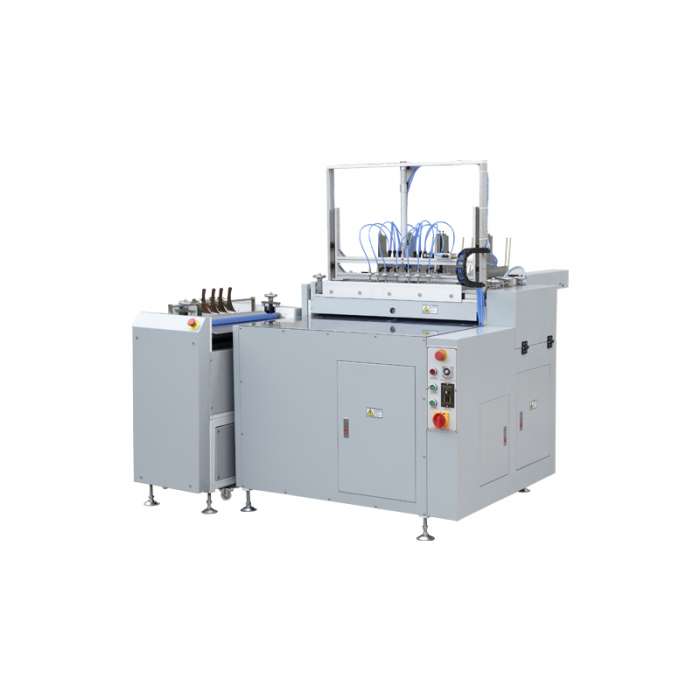

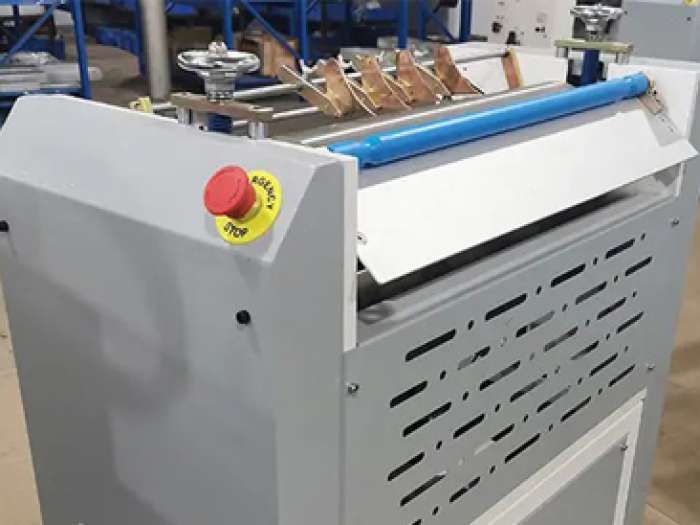

Semi Auto Case Making Machine

Tag : case making machine,hardcover case maker,hardcover case
Semi Auto Case Making Machine is applied in covering and pressing various notebooks, photo books (photo album), folders, certificates, hardcover books. Simultaneously on both sides of wrapping, with two times completed for case pasting, one person operation, simple and small working space, especially fit for post digital printing. This process is finished easily at twice on both sides at the same time by one operator. It is the good partner of post-press, especially the digital post-press.

Parameter

  • Max Open Book Case Size
  • 760×450mm
  • Min Open Book Case Size
  • 140×140mm
  • Min Case Spine Width
  • 8mm
  • Paperboard Thickness
  • 1-4mm
  • Cover Material Thickness
  • 80-200gsm
  • Work Speed
  • 3-9pcs/min
  • Mainframe Power
  • 6.7kw
  • Power Supply
  • 380V/50HZ,220V/60HZ,3 Phase
  • Machine Weight
  • 650kg
  • Machine Dimensions
  • 1680x1620x1600mm(L×W×H)

Details

  • Seperate Gluing Unit

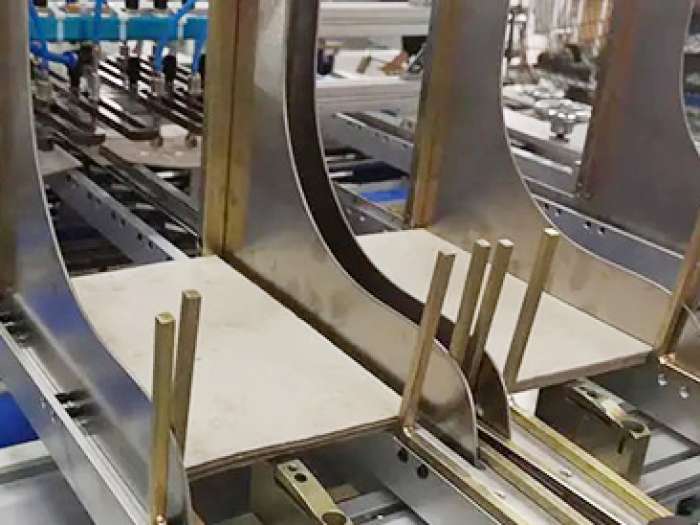

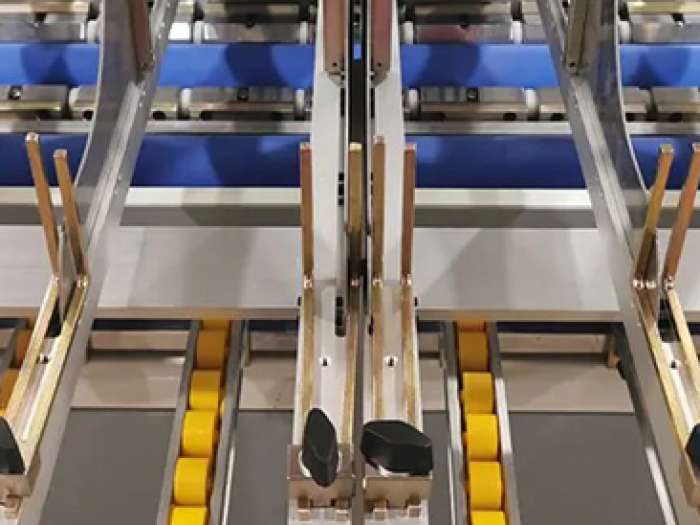

  • 5 Board Position Area

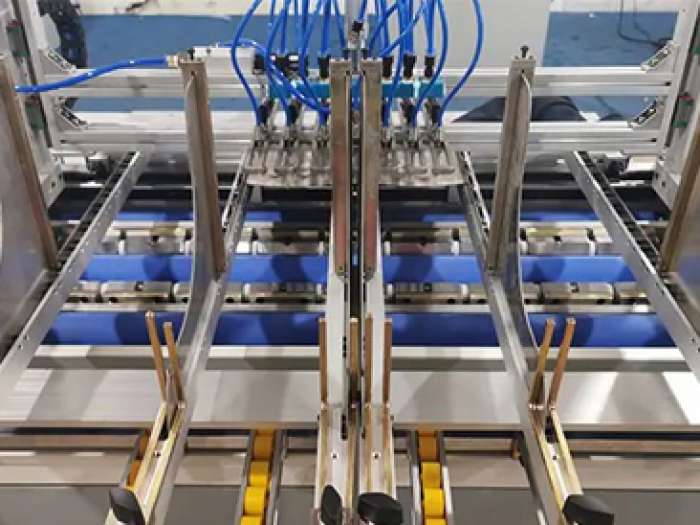

  • Cover Auto Feeding and Folding
  • Cardboard Storage
