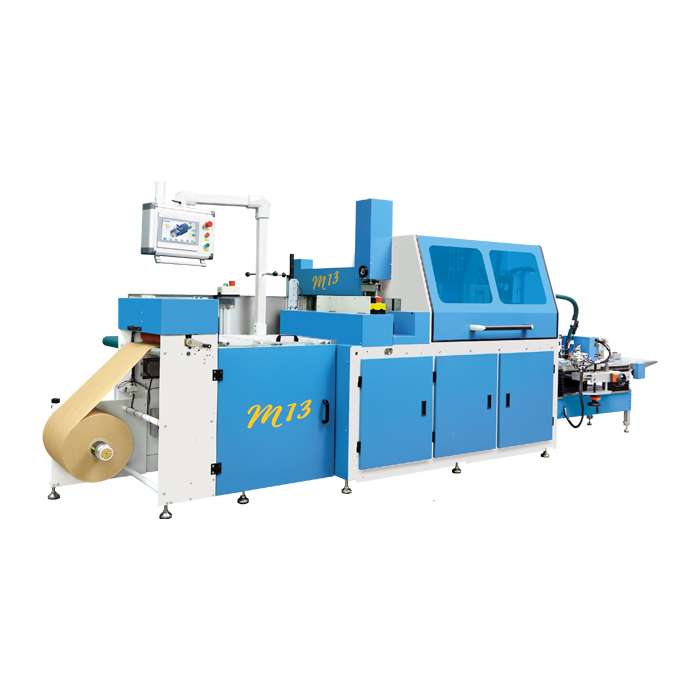

HXM13 Automatic Book Stack Kraft Paper Packing Machine

Tag : book stack,packing machine,kraft paper
HXM13 Automatic Book Stack Kraft Paper Packing Machine streamlines the entire packaging process for book stacks (from 64K to 16K) by seamlessly integrating feeding, paper cutting, glue application, folding, sealing, and labeling into one continuous automated operation. Engineered for high efficiency and consistent output, this robust machine utilizes a precision servo-driven system and advanced industrial controls to ensure reliable and durable performance while significantly reducing labor requirements. It offers exceptional operational flexibility, allowing for quick automatic changeover between different packaging jobs in under a minute.

Parameter

  • Fastest Speed
  • 10pack/min
  • Pack Length
  • 180-360mm
  • Pack Width
  • 140-256mm
  • Pack Heigth
  • 80-270mm
  • Pack Weigth
  • ≤7.5kg
  • Kraft Paper Thickness
  • 60-120gsm
  • Min Roll Inside Diameter
  • 75mm
  • Max Roll Outside Diameter
  • 500mm
  • Max Kraft Paper Width
  • 550mm
  • Paper Cutting Length
  • ≤950mm
  • Paper Cutting Width
  • ≤550mm
  • Tape Roll Outside Diameter
  • ≤180mm
  • Tape Roll Inside Diameter
  • ≥75mm
  • Tape Width
  • 40-60mm
  • Tape Thickness
  • 0.06mm
  • Dimensions
  • 5000×1600×1700mm(L×W×H)
  • Power Supply
  • 3×380V N PE
  • Power
  • 4.5KW
  • Air
  • 0.5-0.7Mpa
  • Weight
  • 1500kg

Details

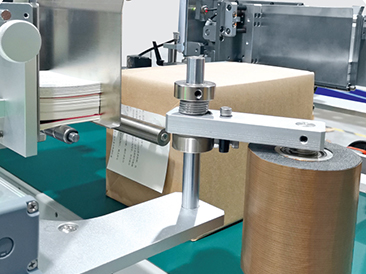

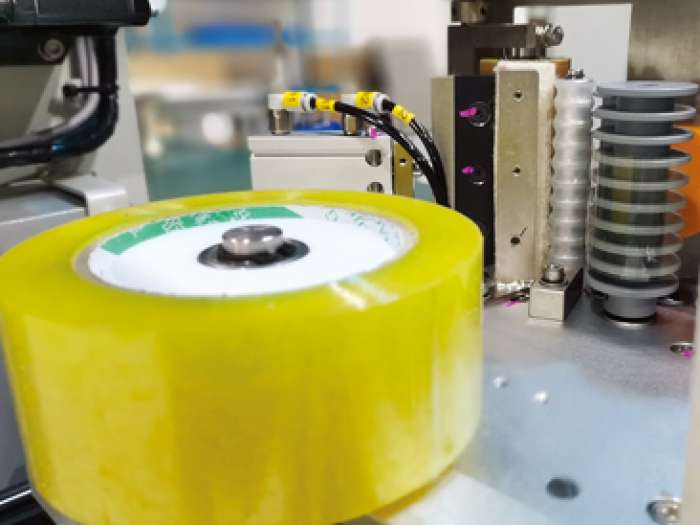

  • Tape Pasting Device

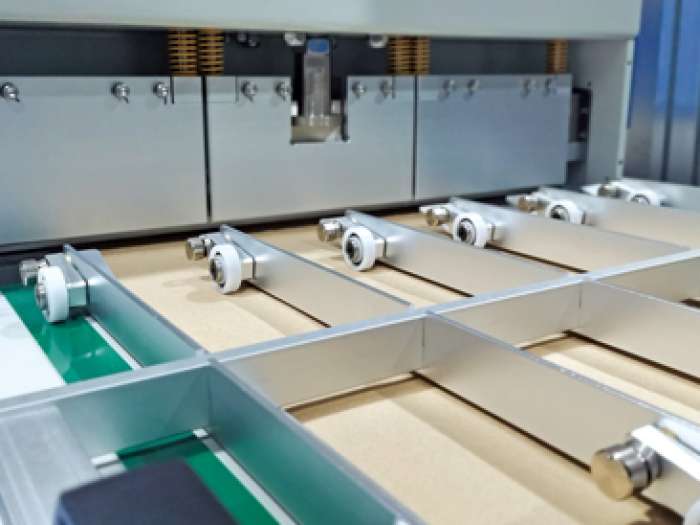

  • Precision Paper Cutter

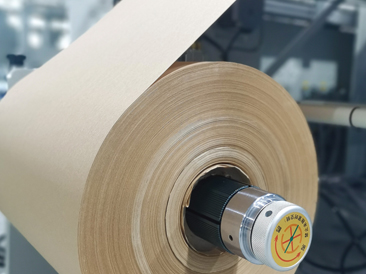

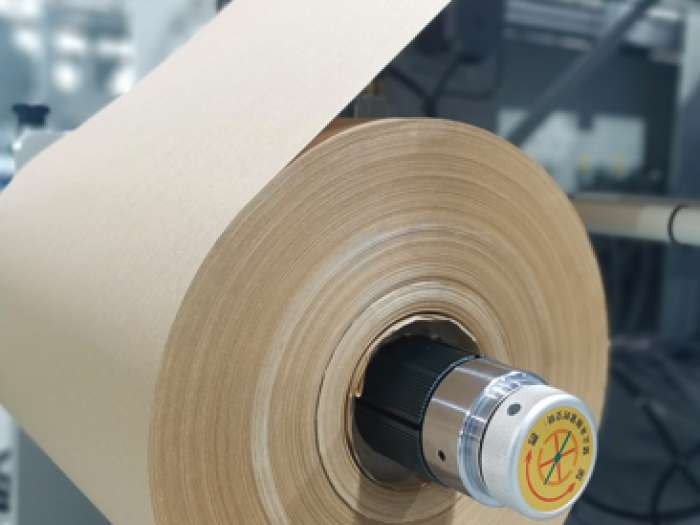

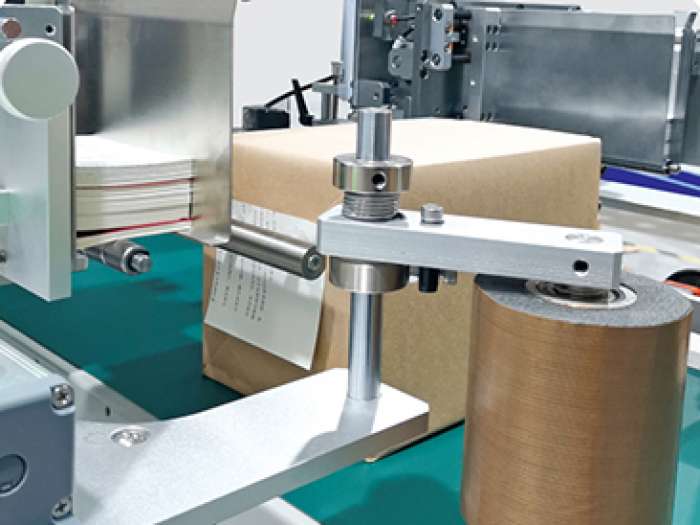

  • Kraft Paper Roller Tensioner
  • Labeling Device
