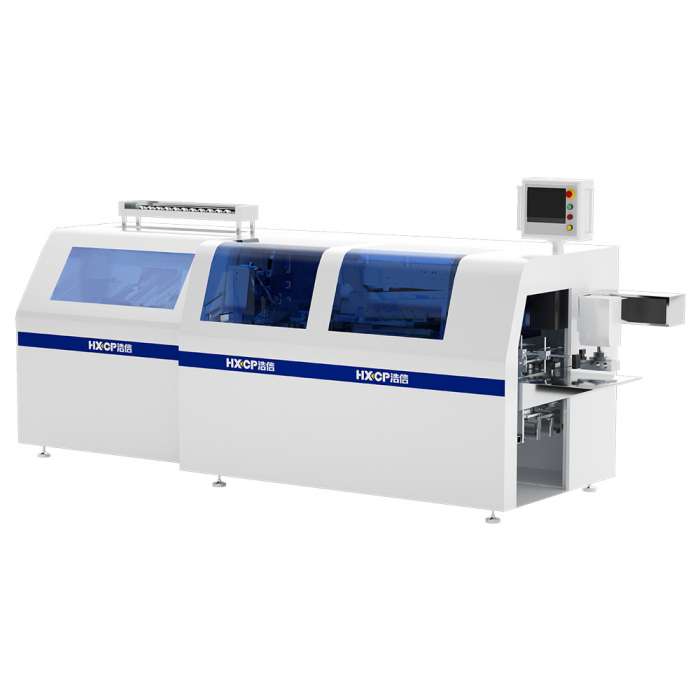

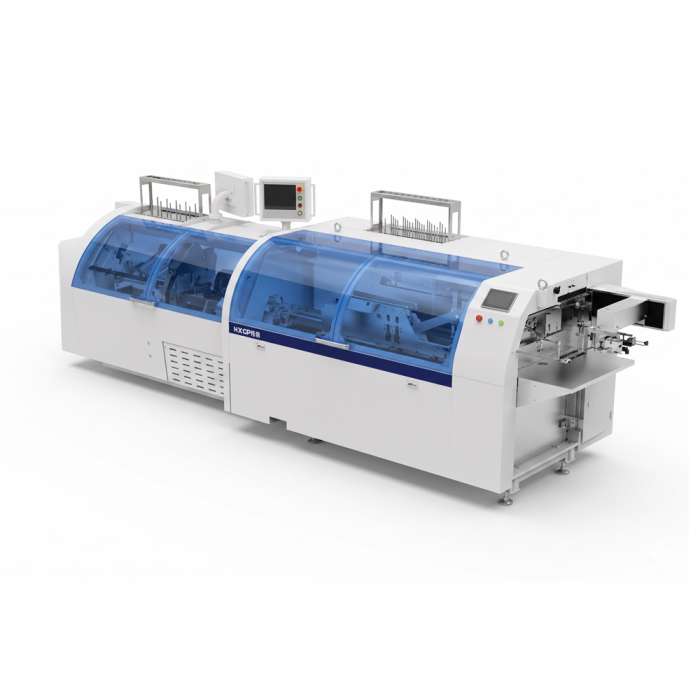

HDP SEW Digital Thread Sewing Machine

Tag : thread sewing machine,book sewing machine,digital book sewing machine,digital book thread sewing m
HDP SEW Digital Thread Sewing Machine is the cost-effective thread sewing solution for high-quality, short-run digital books. Automates sheet-fed creasing, folding, pressing & sewing. Auto-configures via innovative transport & efficient dual-cylinder collating for high productivity. Handles diverse paper types/weights reliably, precise processing ensures premium quality. Auto-separates blocks, delivers spine-up. Thread trimming device reduces thread ends to around 10mm, preventing them from sticking out between the book and the cover. Features latest electronics, ABB PLC & intuitive touch screen for ease of use.

Parameter

  • Max. Effective Production Speed
  • 500 A4 sheets/min
  • Min. Sheet Size
  • 150×200mm
  • Max. Sheet Size
  • 420×640mm
  • Min. Signature Size
  • 150×100mm
  • Max. signature size
  • 420×320mm
  • Number of Sheets in Signature
  • 1-16sheets
  • Max. Folded Signature Thickness
  • 1.5mm
  • Min. Sheet Thickness
  • 50gsm
  • Number of Stitch Positions
  • 10
  • Stitch Length
  • 19mm
  • Sheet Stacking Height
  • 500mm
  • Max. Workbench Loading
  • 200kg
  • Max. Power Consumption
  • 4.5kW
  • Max. Mechanical Sewing Speed
  • 10000cycles/h
  • Max. Sheet Feeding Speed
  • 550sheets/min
  • Standard Volta
  • 400V, 50Hz, 3Phases
  • Max. Air Consumption (External Supply)
  • 620L/min @7bar
  • Net Weight
  • 3000kg
