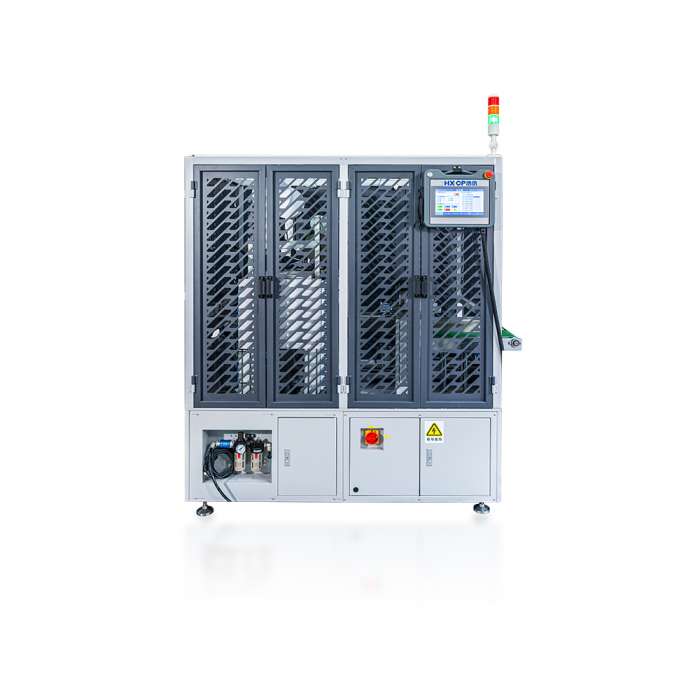

HDP DHB Digital Book Block Head and Tail Band Fixing Machine

Tag : head band,headband,end band,hardcover book,notebook
HDP DHB Digital Book Block Head and Tail Band Fixing Machine is a fully automatic machine for applying head and tail bands on round and square edge book blocks, inputting the size data through the touchscreen, and then all parts are set automatically for job changeover. The head and tail bands are joined to the glue strip, cut according to the book block thickness, applied to the book spine, and then fixed with transparent adhesive tape. This machine can be connected with three knife trimmer or other banding machines and also can be used as an independent machine.

Parameter

  • Max. Book Size
  • 380×310×40mm
  • Min. Book Size
  • 150×120×7mm
  • Speed
  • 900 books/h
  • Dimensions
  • 1.8×0.9×1.9m (L×W×H)
  • Weight
  • 600kg
  • Power
  • 220V
  • Voltage
  • 3kW
  • Air Demand
  • 0.6mpa, 8m³/min
