Why Choosing HX2000 Automatic Ribbon Inserting Machine

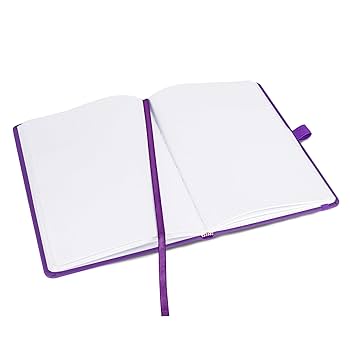

In the world of premium stationery and bookbinding, the ribbon bookmark is a small detail that signifies quality. However, inserting these ribbons has traditionally been a labor-intensive bottleneck. Enter the HX2000 Automatic Ribbon Inserting Machine by HXCP—a flagship solution designed to automate, speed up, and perfect the ribbon insertion process for notebooks, diaries, and hardcover books.

Here is a deep dive into how this machine is transforming post-press production.

What is the HX2000?

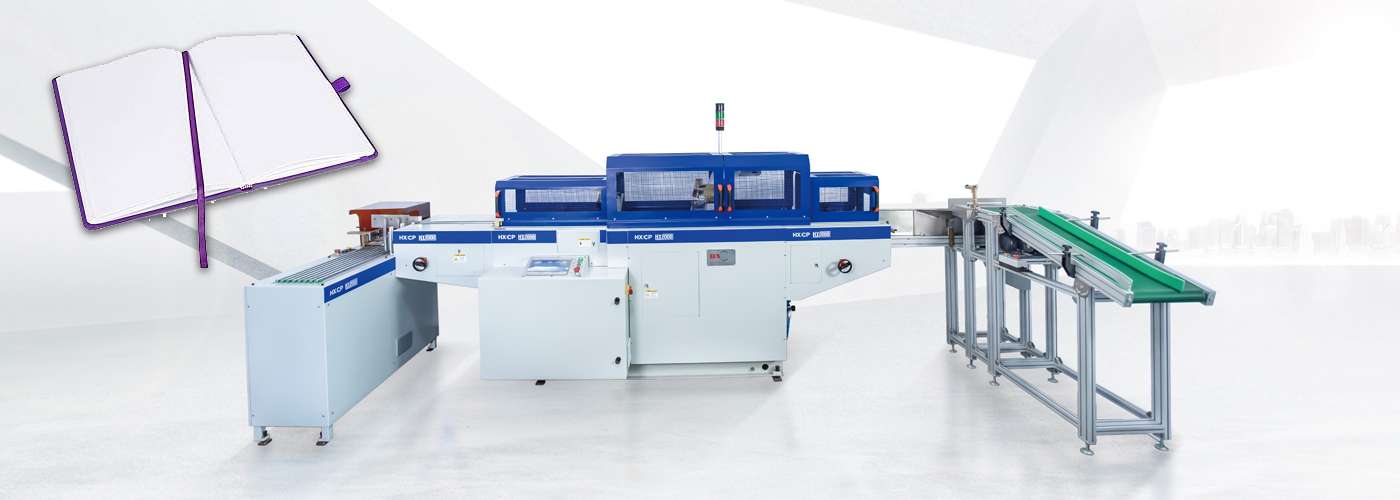

The HX2000 is a fully automated machine dedicated to inserting ribbon bookmarks into book blocks. It is engineered to replace manual labor, offering a high-speed solution that cuts, inserts, and glues ribbons with precision. It is widely used for producing diaries, notebooks, Bibles, and hardcover books.

Whether you are running a small batch of custom stationery or mass-producing millions of student diaries, the HX2000 is built to handle the workload efficiently.

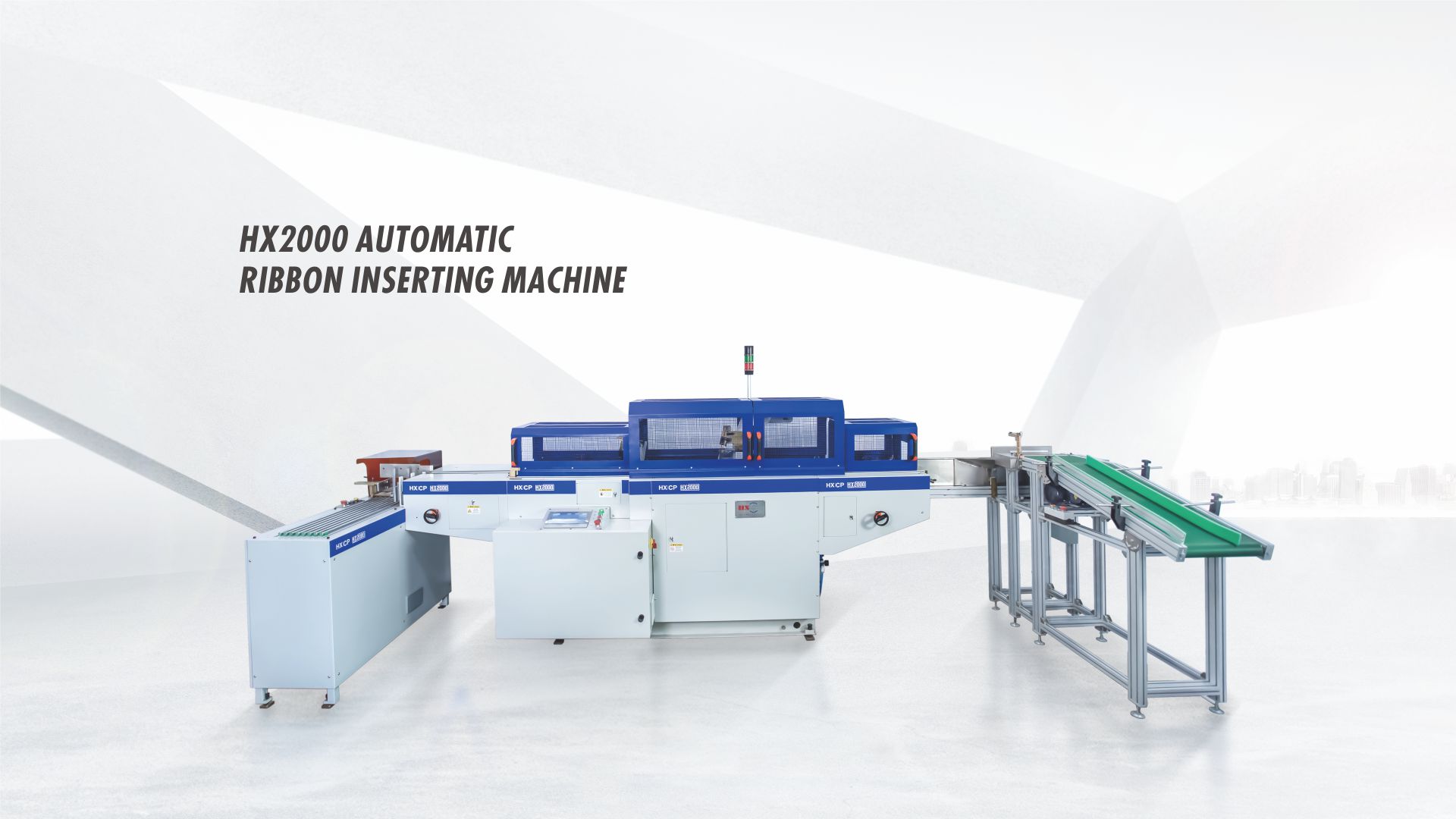

Automatic Notebook Ribbon Inserting Machine

Key Selling Points & Features

1. High-Speed Productivity The machine operates at a maximum speed of 45 to 50 books per minute. This stable output significantly increases production capacity compared to manual insertion.

2. Labor Automation One HX2000 machine is equivalent to the output of approximately 10 skilled workers. This dramatically reduces labor costs and solves common issues related to labor shortages in the manufacturing sector.

3. Flexible Operation Modes The equipment is highly versatile. It can operate as a stand-alone machine (offline) or be integrated in-line with other systems, such as between a three-knife trimmer and a hardcover book production line.

4. Premium Gluing System Quality is paramount. The HX2000 utilizes a Nordson brand hot-melt glue spray system. This ensures that the glue is applied evenly and the ribbon is attached firmly to the book spine every time.

5. Customizable Ribbon Finishing The machine features a heated splitting device that prevents ribbon fraying. It offers flexibility in aesthetics, allowing for straight cuts or 45-degree bevel cuts on the ribbon tail.

How It Works: The Automated Workflow

The HX2000 streamlines the entire process into a seamless flow, requiring minimal operator intervention.

1. Automatic Feeding: Books are loaded onto a continuous feeding conveyor. The system automatically separates and feeds the notebooks, reducing manual handling.

2. Book Splitting: The machine identifies the correct position within the book block and splits it open using a specialized dividing mechanism.

3. Ribbon Insertion: The ribbon is pulled from the roll, measured to the exact length via the touchscreen interface, and inserted into the book block. The machine can handle single ribbons effectively, and can even insert two ribbons simultaneously (for downstream gluing).

4. Cutting: An electric heating cutter slices the ribbon to the pre-set length and angle.

5. Gluing: The Nordson system sprays hot melt glue onto the spine head. A fixing scraper then presses the ribbon onto the glue to ensure a secure bond.

6. Finishing & Collection: The ribbon tail is automatically bent and tucked back into the book pages so it doesn't hang loose during transport. Finally, the books are counted and stacked at the output section for easy collection.

Technical Specifications Snapshot

• Book Size (Max): 290 × 210 mm

• Book Size (Min): 140 × 80 mm

• Book Thickness: 8–45 mm (capable of up to 60mm depending on configuration)

• Speed: Up to 50 pieces/minute

• Ribbon Material: Polyester, Cotton, Satin (3-25mm width)

• Power Supply: 380V / 6KW

Benefits for Notebook Manufacturers

• Cost Efficiency: By replacing manual labor, manufacturers see a rapid return on investment through reduced wages and increased throughput.

• Consistency: Unlike manual insertion, which can vary, the machine ensures every ribbon is glued at the exact same spot and cut to the exact same length.

• Reliability: The machine is noted for its robustness. Customer feedback from installations in the UK, Poland, USA, and Malaysia indicates smooth operations for over a year with no breakdowns or part replacements.

• Inventory Management: The built-in automatic counting system allows operators to easily monitor production quantities and manage orders.

For bindery and stationery factories looking to cope with order peaks and upgrade their automation levels, the HX2000 Automatic Ribbon Inserting Machine is an essential investment. It combines speed, precision, and reliability to produce high-value notebooks and diaries that meet global standards.
