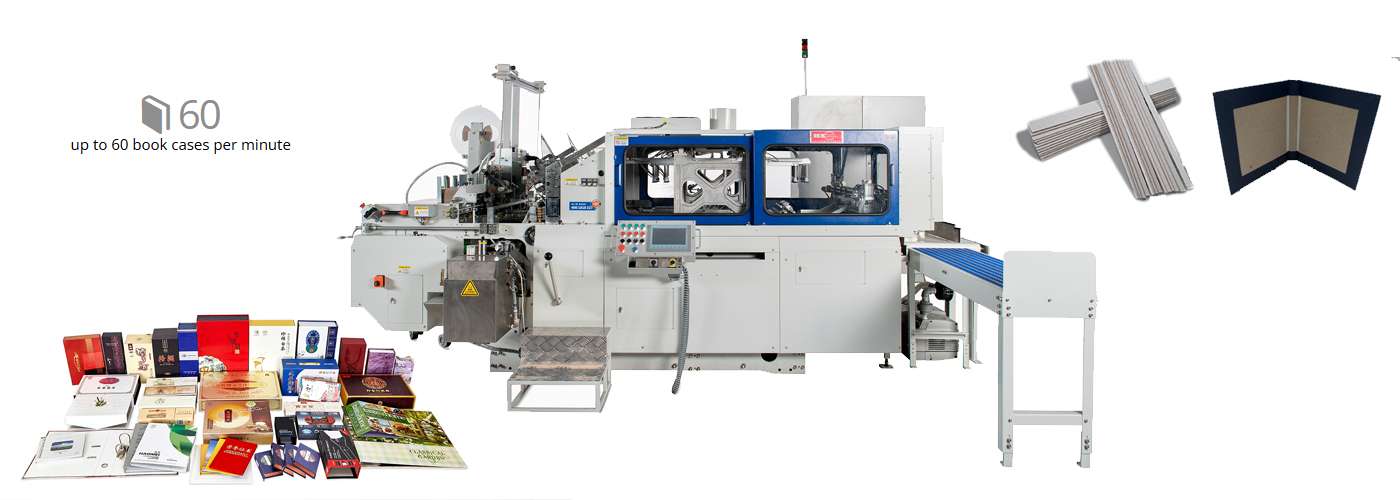

HX60 PLUS High Speed Hardcover Case Making Machine

In the competitive printing and packaging industry, speed and precision are the currency of success. Introducing the HX60 PLUS High Speed Hardcover Case Making Machine, a revolutionary "Short-Long Book Making Model" designed to redefine production efficiency. Whether you are producing luxury book covers, rigid boxes, or game boards, the HX60 PLUS delivers an unmatched performance of 60 cycles per minute.

Here is why the HX60 PLUS is the preferred choice for manufacturers worldwide.

HX60 PLUS High Speed Hardcover Case Making Machine

1. Unrivaled Speed and Efficiency

The standout feature of the HX60 PLUS is its capability to produce up to 60 pieces per minute (approx. 1 cycle/second). This industrial-grade machine is engineered for high volume and low failure rates, making it a game-changer for businesses looking to scale operations without compromising quality.

2. Intelligent Automation & Precision

Modern production requires smart machinery. The HX60 PLUS features an Internet of Things (IoT) docking system compatible with ERP/MCS online intelligent monitoring. This allows for real-time diagnostics and seamless workflow integration.

• Precision Alignment: The machine boasts an impressive alignment accuracy of ±0.2mm, ensuring every case is flawless.

• On-the-Fly Adjustments: Operators can fine-tune positioning control while the machine is running, significantly reducing downtime.

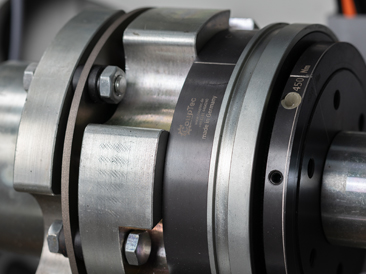

Overload Protector

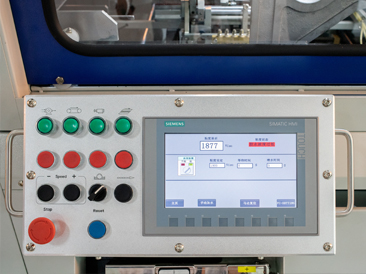

SIEMENS Control Panel

3. Innovative Design Features

The HX60 PLUS incorporates several patented technologies to solve common production headaches:

• Scratch-Free Conveying: A patented oscillating linear conveying design ensures the shell is not scratched during the process.

• Perfect Bonding: Specialized gripper rollers and glue wheels, combined with viscosity control, ensure exact glue application. This not only guarantees bonding quality but also saves glue usage.

• Bubble-Free Finish: The gluing and pressing mechanisms are designed to prevent the formation of empty shells and air bubbles, ensuring a smooth, professional finish.

4. Versatile Material Handling

Flexibility is at the core of the HX60 PLUS. It handles a wide variety of cover materials, including PU, paper, special paper, PP, and cloth.

• Size Expandability: It supports a maximum case size of 680×390mm and a minimum of 105×160mm.

• Board Thickness: The machine accommodates board thicknesses from 1mm to 4mm, with optional devices available for handling boards as thin as 0.6mm.

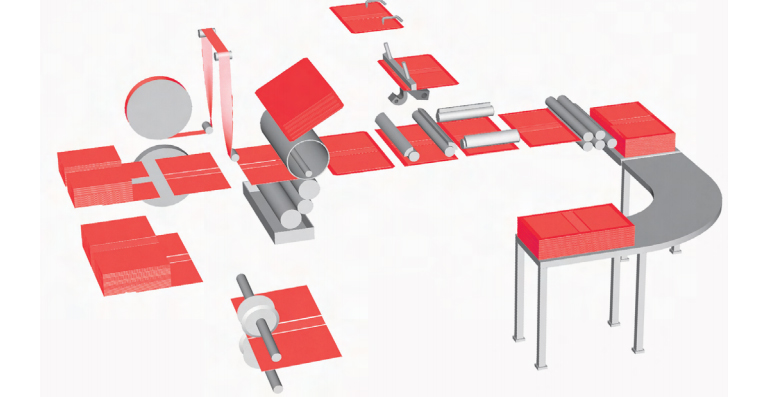

5. Seamless Workflow Process

The HX60 PLUS is designed for non-stop operation.

1. Feeding: The non-stop paper cover conveying feeder ensures continuous input.

2. Gluing: Viscosity-controlled gluing guarantees consistent coverage.

3. Positioning: High-precision cameras and grippers align the cardboard onto the cover material.

4. Folding & Pressing: Patented corner folding and hemming mechanisms create sharp, durable edges.

5. Output: The finished cases can be integrated with the HX60F Automatic Hardcover Case Turner for automatic stacking and scratch prevention.

6. Ideal Application Scenarios

This machine is the perfect solution for:

• Publishing Houses: Hardcover books, encyclopedias, and art books.

• Stationery Manufacturers: Notebooks, calendars, and diaries.

• Packaging Industry: Luxury rigid boxes, gift boxes, and game boards.

Summary Specifications

• Max Speed: 60 pcs/min

• Max Case Size: 680×390mm

• Compressed Air: 650L/min @ 6bar

• Dimensions: 5.7m × 3.3m

Elevate your post-press production today. The HX60 PLUS High Speed Hardcover Case Making Machine combines speed, intelligence, and versatility to help you dominate the market.
