Best HDP TST Digital Three Side Trimmer for Perfect Bound Books 2026

In modern digital book production, the three-side trim is the final touch that defines perceived quality. Yet many binderies still use conventional three-knife trimmers originally designed for long-run offset books. These machines require lengthy makeready, often mark delicate digital covers, and—most critically—cause spine tearing on perfect bound and sewn blocks when the knife pulls unidirectionally. The HDP TST Digital Three Side Trimmer was engineered specifically to eliminate these pain points.

HDP TST Digital Three Side Trimmer

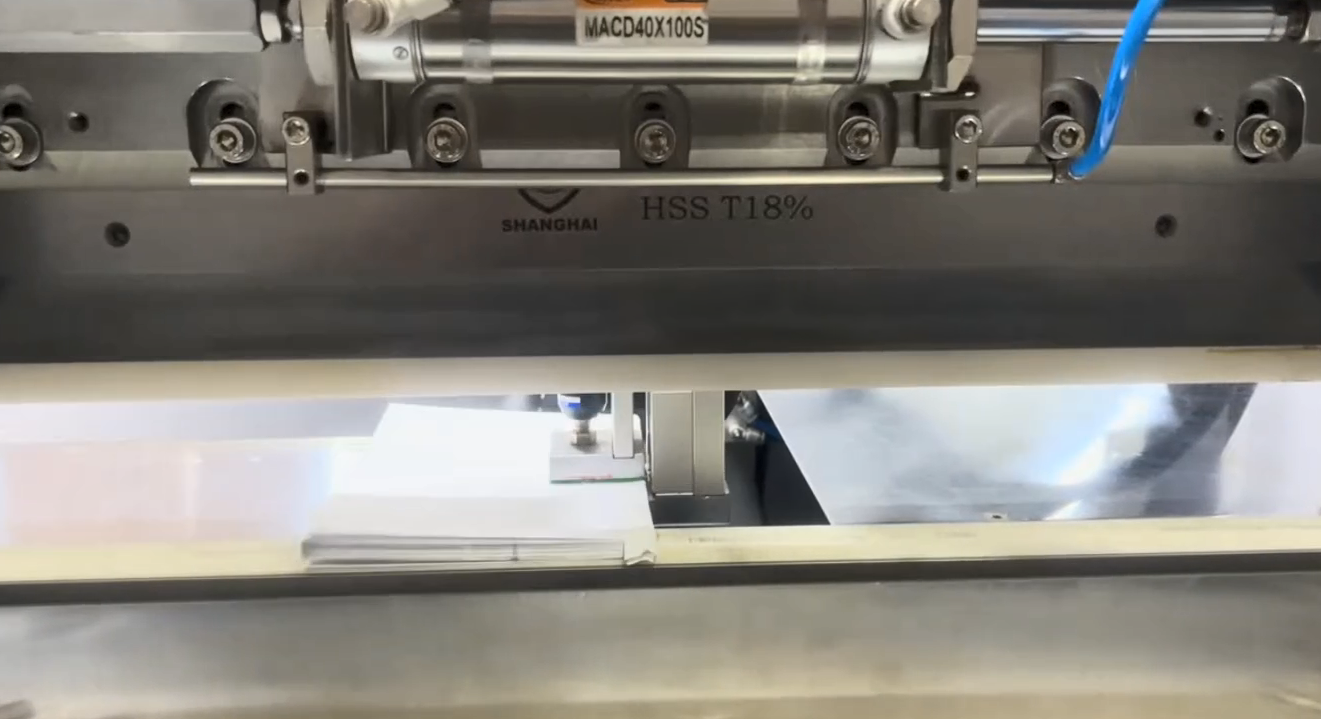

The HDP TST's core advantage is its advanced single-knife technology paired with automated pile rotation. Rather than using three fixed knives that must be manually repositioned, a single precision blade trims the top, fore-edge, and bottom in sequence as the book block rotates. This design produces clean, markless edges on coated digital stock and laminated covers—something multi-knife systems routinely struggle with.

Spine integrity is protected by the unique bi-directional knife movement. The blade descends from alternating directions (left-to-right and right-to-left) depending on the cut, eliminating the unilateral tensile force that tears glued spines. For sewn book blocks and thin-spine perfect bound books, this feature alone can reduce reject rates from spine damage to near zero.

Zero-makeready capability transforms short-run viability. Via barcode scanning or JDF workflow integration, the HDP TST receives job dimensions directly from your MIS or prepress system and automatically adjusts all cutting parameters—no manual gauge setting, no test cuts. Format changes between a thin A6 notebook and a thick A4 textbook take seconds, making "book-of-one" on-demand production genuinely profitable.

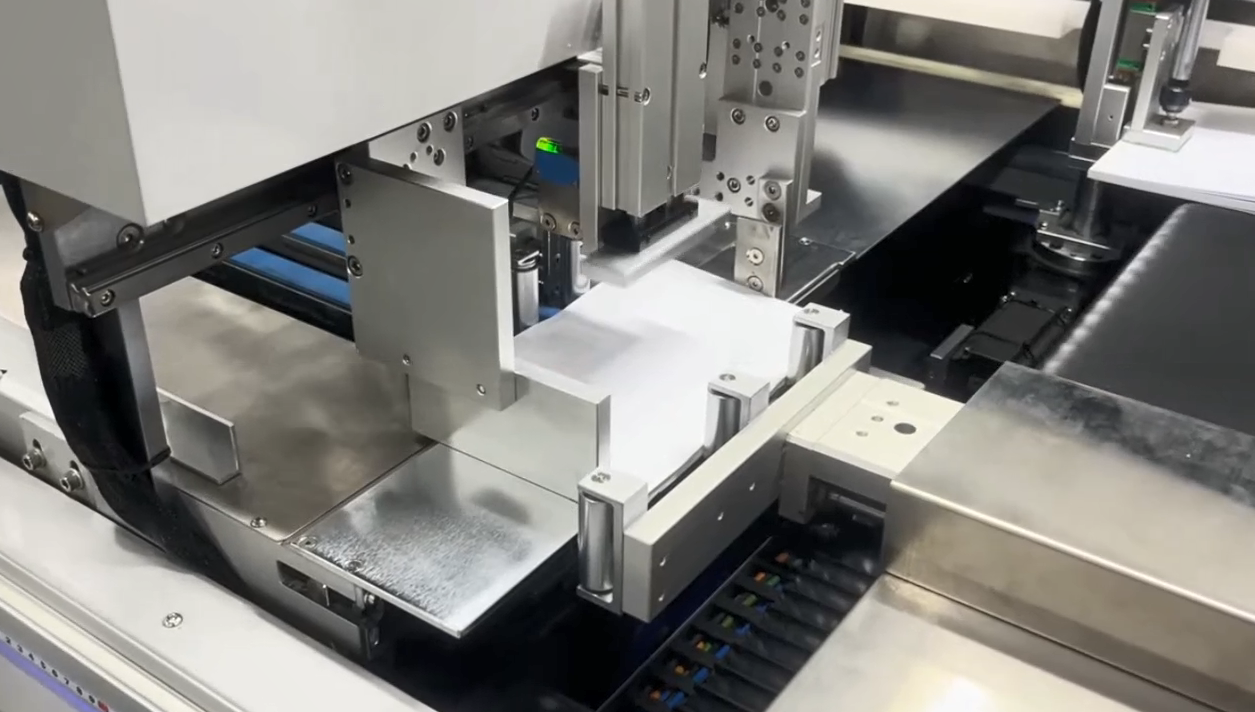

Servo-controlled hydraulic clamping auto-adapts to variable book thicknesses from 5–40 mm. The system applies optimal, uniform pressure to secure the block without crushing pages or deforming soft-bound spines. This is particularly valuable when running mixed-thickness batches, as the clamp self-adjusts without operator intervention.

The machine handles a broad range of formats: max. feeding size 330×390 mm, min. 120×140 mm (front edge×height); finished book sizes from 110×130 mm to 320×380 mm; spine-first feeding with centering range 67.5–195 mm. Cutting accuracy is ±0.5 mm—tight enough for premium trade editions and photo books.

Throughput is rated at 240–300 cuts/hour (speed varies with book weight/thickness), balancing precision with productive cycling for digital print volumes. An optional corner rounding module lets you offer rounded-edge children's books and gift books without a secondary operation.

Safety and labor efficiency are built in. A fully interlocked guarding system permits unattended operation once the batch is loaded, freeing operators for other binding tasks. The robust 8 kW system (1800 kg, 2000×1500×1900 mm) is built for continuous daily use in busy finishing rooms.

For digital printers and trade binders, the HDP TST is more than a trimmer—it is a quality safeguard. By preventing spine tears, eliminating cut marks, and removing makeready downtime, it protects your margins on short runs while delivering gallery-quality finished books your clients notice.
