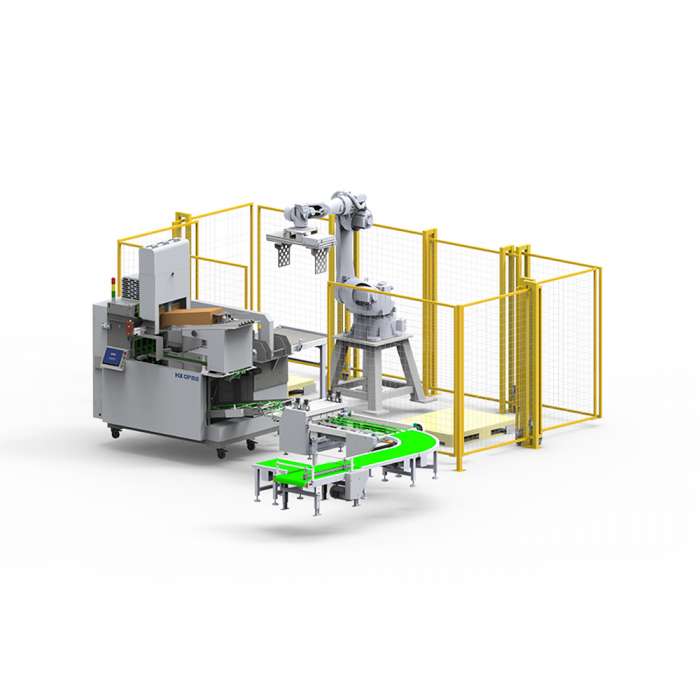

Web Press Signatures Collecting Bundling Palletizing System

Tag : robot,web press,folding machine,bundling machine

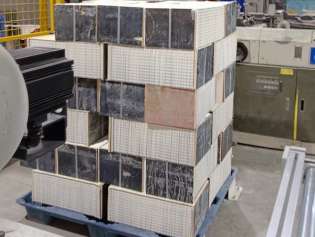

Web Press Signatures Collecting Bundling Palletizing System can be connected with the web press printing machine, for folded signatures collecting, collect the folding signatures vertically, by pressing and fapping the stack neatly, then pushing them into the bundling station, inserting the clapboard at both ends automatically, with 3000N pressure pressing and bounding the stack automatically. It is the fully automatic delivery for large runs folding signatures production, no laborer required, completely the intelligent automatic folding process.

Parameter

  • Max. Folding Speed
  • 40000pcs/h
  • Max. Signature Size
  • 460×320mm
  • Min. Signature Size
  • 210×105mm
  • Signature Requirement
  • 60-120gsm 16/32K
  • Bundle Thickness
  • 500-700mm
  • Feeding Height
  • 300-520mm
  • Board Thickness
  • 8-12mm
  • Bundling Pressure
  • 8000N
  • Power
  • 380v/3ph 6.5kw
  • Gas Demand
  • 6bar
  • Dimensions
  • 3000×950×2550mm(L×W×H)
  • Weight
  • 2000kg
